Online UPS
Online UPS provides a stable power supply with an excellent power performance. It is enhanced by an in-built Galvanic Isolation Transformer that will protect your critical equipment from voltage spikes and transients and thus maintains clean, noise-free power for critical loads.
SPECIFICATIONS
- Output Isolation Soft Start Facility .
- Generator Compatible High Crest Factor > 3:1
- Compact, Sleek Desi gn Inverter Efficiency > 90 %
- Distortion Less Than 3 % High Input Power Factor
- Float-cum-boost Charger Low Noise < 55db Upto 50 KVA
- Micro Processor / Dsp Based Design
- IGBT Based Hi-frequency Pwm Inverter
- Crystal Controlled Output Frequency (50hz + 0.01%)
Technical Specifications
AC INPUT PARAMETERS-
AC Input Voltage
- Single Phase : 160V-270V AC 3 Wire
- Three Phase : Norminal, 415 V 4 wire, variation : 300V-470V. Input Power Factor > 0.9 PS : UPS with higher input range can also be supplied on request AC INPUT PARAMETERS Technical Specifications Input Frequency
- 47Hz - 53 Hz Can also work on Generators DC Output (Rectifier)
- UPS CAPACITY
a) 1.0 KVA to 50 KVA PS : System with other DC Voltage can also be supplied on request.
DC Output (Rectifier)
- UPS CAPACITY
- a) 1.0 KVA to 50 KVA
- b) DC OUTPUT VOLTAGE (NOMINAL)
- c) 120- 144- 180- 360V
Output Parameters
| Output Voltage (Nominal) | 230 V AC Single Phase | 415V AC Three Phase |
| Voltage Stability | + 1% for DC Input variation & Output Load variation | |
| Frequency | 50 Hz + 0.05 Hz (Crystal controlled) or | 60 Hz + 0.06 Hz or any optional frequency |
| Waveform | Sinewave | |
| Harmonic Distortion | Less than 3% | |
| Efficiency (Invertor) | > 93 % for 360 V DC | > 90% for 180 V DC |
| Power Factor | 0.8 lagging to unity | 415V AC Three Phase |
| Over Load | 110% for 10 minutes | 200% for 5 cycles. 400% for cycles or as per customer's requirement |
| Crest Factor | > 3:1 or as per customer's requirement | |
| Transient Recovery | Within 3 cycles | |
| Phase Displacement for 3 phase Output | 120 + 1 | |
| Audible Noise | Less than 55db at I meter upto 50 KVA |
INDICATORS
- Mains On
- Output On
- Inverter Overload
- Battery Low
- Output High
- Back Up
AMBIENT CONDITIONS
- Operating : 0 C - 45 C
- Storage: 0 C - 60 C
- Relative Humidity : 95% RH
- Operating Altitude :upto 2000 meters
- Output High
- Back Up
METERING
- Digital Metering available for Output Voltage :
- Output Frequency or any other parameters as per customers as per customer's requirement.
METERING (Optional)
- Static By-Pass Switch
- Serial RS 232 Inter Face
- Auto File Shutdown
- Microprocessor based Digital Metering

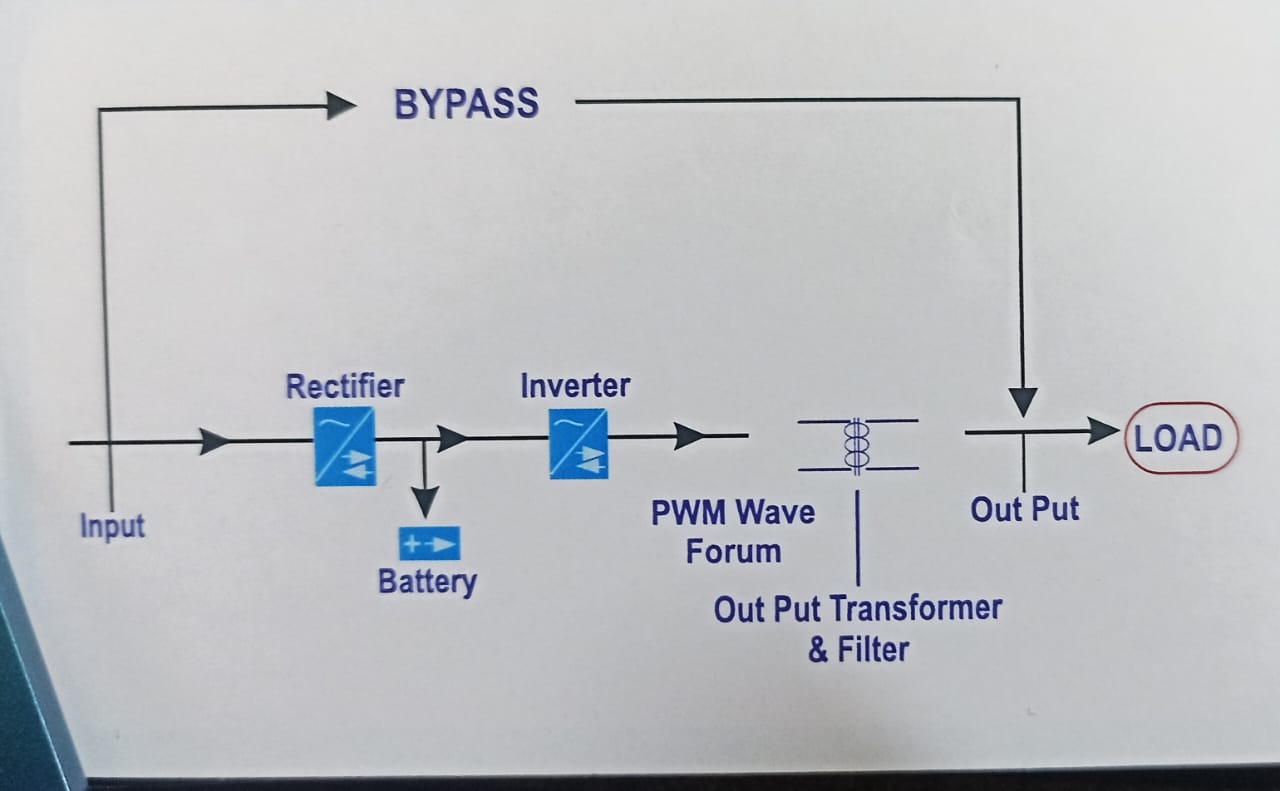

IGBT & PWM TECHNOLOGY
A widely used and developed semiconductor,IGBT(INSULATED GATE BIPOLOAR TRANSISTOR),
are used in the inverter part of the UPS.With the Sinuosoidal pulse width Modulation Technique, Maximum operational efficiency is obtained and thus even the non-linear loads are fed with precise sinusoidal signal
